Pneumatic Rubber Fender Marine Ball Can Be Customized Color STS,STD,Ship
Qingdao Henier Ship Supplies Co., Ltd.

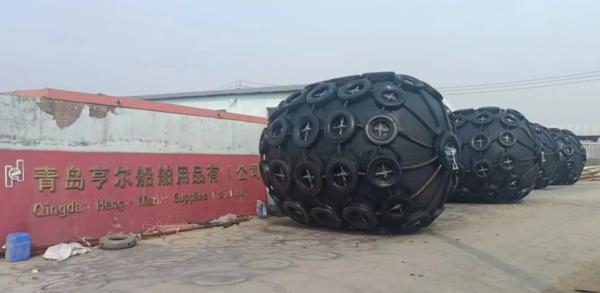

Qingdao Henier Ship Supplies Co., Ltd. is located in the beautiful coastal city of Qingdao. Is a professional manufacturer of marine products, such as inflatable rubber fenders, foam fenders, marine rubber airbags, marine navigation marks, and mooring buoys. The production department is located in Jinkou Town, Jimo City, about two hours' drive from Qingdao Port. The geographical position is superior and it has 20 years of production experience in the production of marine supplies. The sales department is located in the Shibei Central Business District with convenient transportation, bringing together professional sales talents from all over the country. Hener's sales team has won the trust of customers from all over the world with a good reputation and professional services. Our service concept is to leave the simplicity to the customers and the complexity to ourselves, and use the most professional service attitude to bring customers the best shopping experience.
Product Description

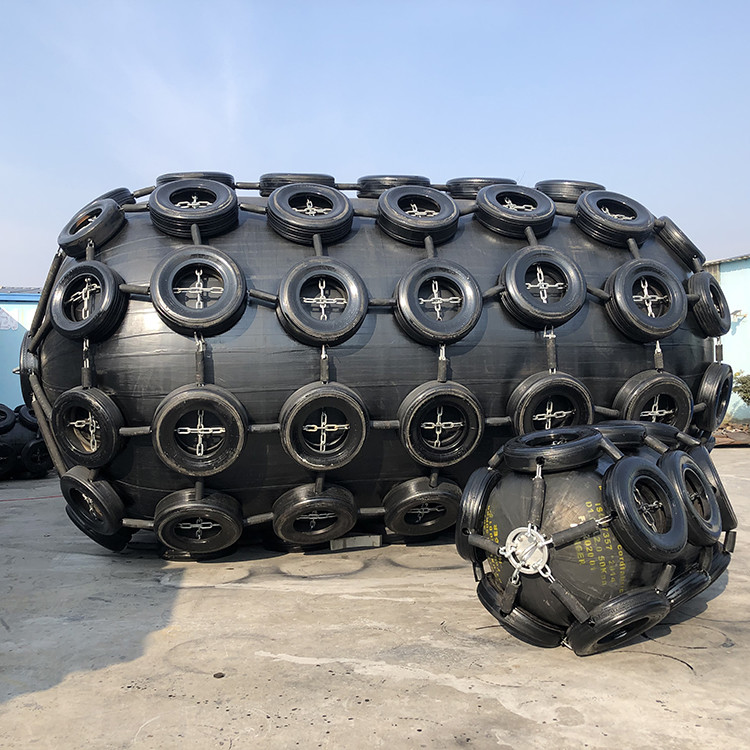

Pneumatic rubber fender is one kind of ship berthing, cushioning and protection equipment, which uses compressed air as the buffer medium to prevent collision when the ship is berthing. These pneumatic rubber fenders play a vital role in the safe operation of ship berthing and mooring, and are widely used in the fields of ship, marine facility, marine platform, port and dock, yacht and so on.The pneumatic rubber fender is more economical and durable than the ordinary rubber fender, so it is more popular and widely used.
Pneumatic Rubber Fender Usage

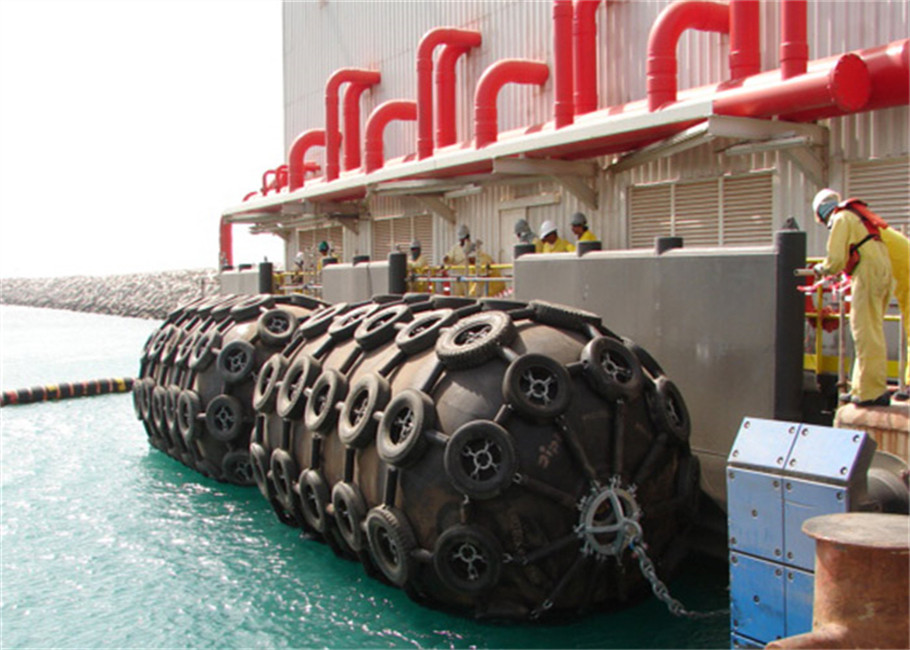

a.Dock protection
Many ships are berthed at the wharf every day. If not protected, it will soon be damaged and affect the normal operation of the wharf

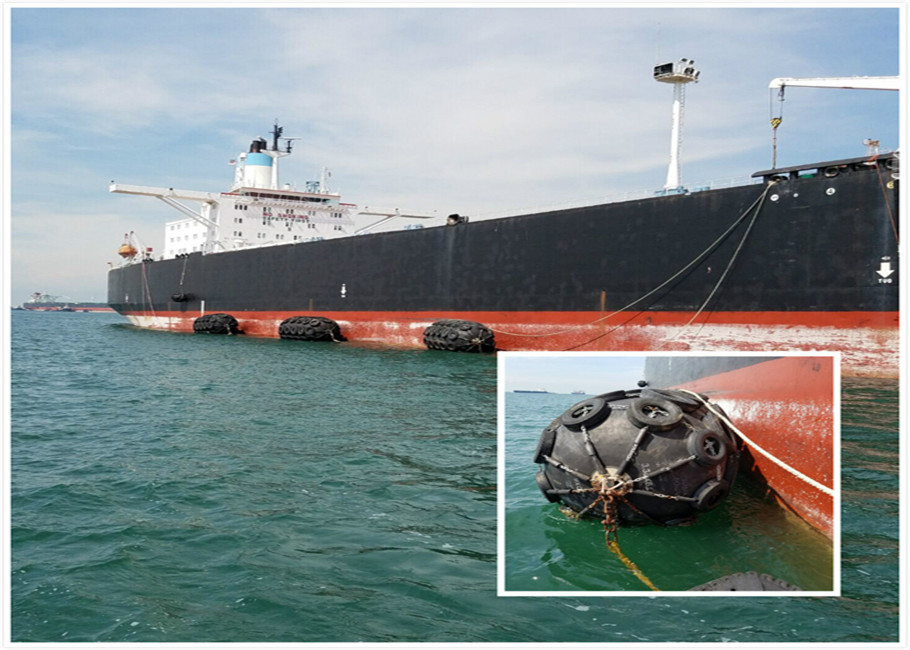

b.Ship protection
Various collision problems encountered during berthing can fully protect the hull

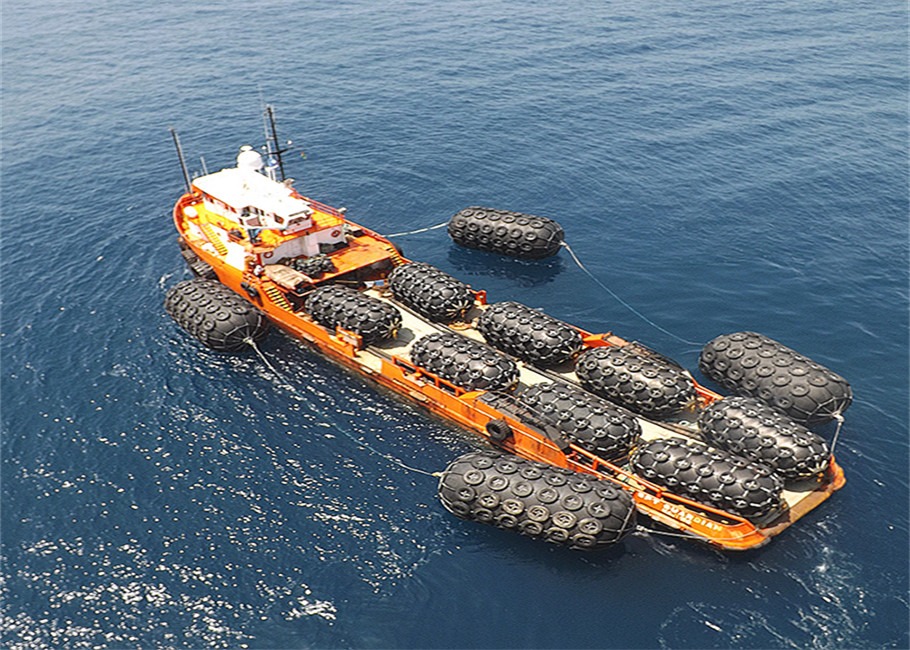

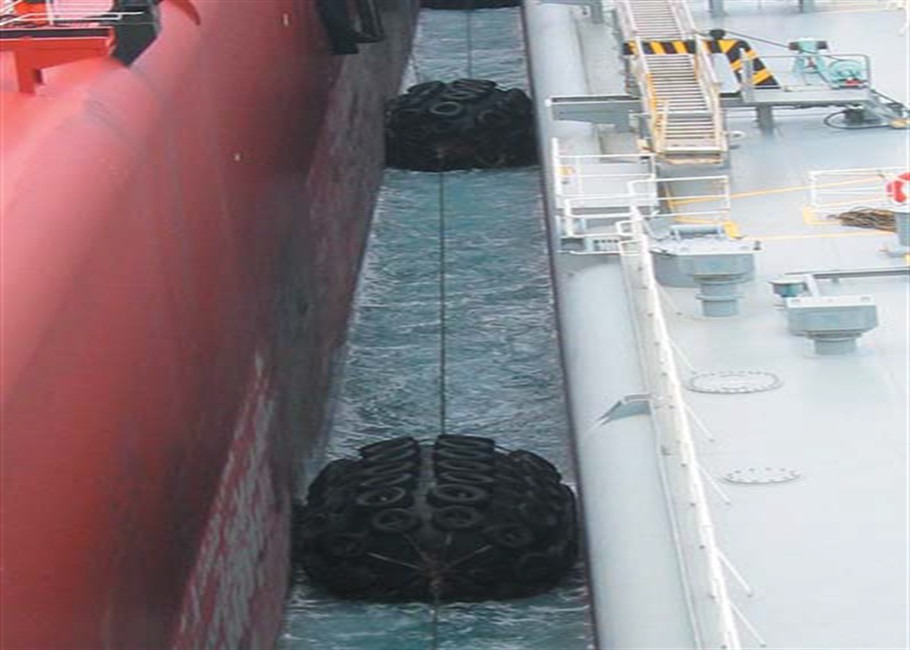

c.Ship to ship protection
Ships in the ship operation, there is a good buffer, protect the role of the hull
Manufacturer advantage
With its own production workshop, the communication is more convenient,
the price is more advantageous, and the delivery date can be adjusted flexibly.
Geographical advantage
It is close to Qingdao Port and has an advantage in cargo transportation.
Products are sold all over the world
The main sales market is located in Southeast Asia, and gradually develops to other regions such as Europe and America with the help of good reputation.
Unique Design of Henger Pneumatic Rubber Fender
1 Pneumatic 50 Kpa fender size and performance requirements
Nominal size
diameter x
lenghth (mm) | Initial internal
pressure kpa | Guaranteed energy
absorption(GEA) | Reaction force at
GEA deflection
(R) | Hull
presure(Internal
pressure)at GEA
deflection(p) |
Minimum value at
deflection 60+5%
KJ | Tolerance +10%
KN | Reference value
Kpa |
| 500*1000 | 50Kpa | 6 | 64 | 132 |
| 600*1000 | 50Kpa | 8 | 74 | 126 |
| 700*1000 | 50Kpa | 17 | 137 | 130 |
| 700*1500 | 50Kpa | 17 | 137 | 135 |
| 1000*1500 | 50Kpa | 32 | 182 | 122 |
| 1000*2000 | 50Kpa | 45 | 257 | 132 |
| 1200*2000 | 50Kpa | 63 | 297 | 126 |
| 1350*2500 | 50Kpa | 102 | 427 | 130 |
| 1500*2000 | 50Kpa | 400 | 108 | 131 |
| 1500*2500 | 50Kpa | 134 | 499 | 131 |
| 1500*3000 | 50Kpa | 153 | 579 | 132 |
| 1700*3000 | 50Kpa | 191 | 639 | 128 |
| 2000*3500 | 50Kpa | 308 | 875 | 128 |
| 2000*4000 | 50Kpa | 352 | 1000 | 132 |
| 2500*4000 | 50Kpa | 663 | 1381 | 137 |
| 2500*5500 | 50Kpa | 943 | 2019 | 148 |
2 Pneumatic 80 Kpa fender size and performance requirements
Nominal size
diameter x
lenghth (mm) | Initial internal
pressure kpa | Guaranteed energy
absorption(GEA) | Reaction force at
GEA deflection
(R) | Hull
presure(Internal
pressure)at GEA
deflection(p) |
Minimum value at
deflection 60+ 5%
KJ | Tolerance +10%
KN | Reference value
Kpa |
| 500*1000 | 80Kpa | 8 | 85 | 174 |
| 600*1000 | 80Kpa | 11 | 98 | 166 |
| 700*1500 | 80Kpa | 24 | 180 | 177 |
| 1000*1500 | 80Kpa | 45 | 239 | 160 |
| 1000*2000 | 80Kpa | 63 | 338 | 174 |
| 1200*2000 | 80Kpa | 88 | 390 | 166 |
| 1350*2500 | 80Kpa | 142 | 561 | 170 |
| 1500*3000 | 80Kpa | 214 | 761 | 174 |
| 1700*3000 | 80Kpa | 267 | 840 | 168 |
| 2000*3500 | 80Kpa | 430 | 1150 | 168 |
| 2500*4000 | 80Kpa | 925 | 1815 | 180 |
| 2500*5500 | 80Kpa | 1317 | 2653 | 195 |
| 3300*4500 | 80Kpa | 1640 | 2476 | 171 |
| 3300*6500 | 80Kpa | 2532 | 3961 | 191 |
| 3300*10600 | 80Kpa | 4281 | 6907 | 208 |
| 4500*9000 | 80Kpa | 6633 | 7551 | 192 |
| 4500*12000 | 80Kpa | 9037 | 10490 | 202 |
After you receive the fender, if there is a problem with the fender
1.If there is a problem with our fenderion, we can replace you with a new fender for free.
2.If it is the minor wear and tear of the fender during your daily normal use, and there is no need to ship it back to China, we can provide you with a solution for remote assistance.
3.If the fender problem is caused by improper operation in your daily use, we cannot provide free fender replacement, you can pay the cost to ship it back to China for repair, or we can remotely assist you to find a solution.
